GEOTECHNICAL INCLINOMETER lnclino-Robot-IRM

- Profile -

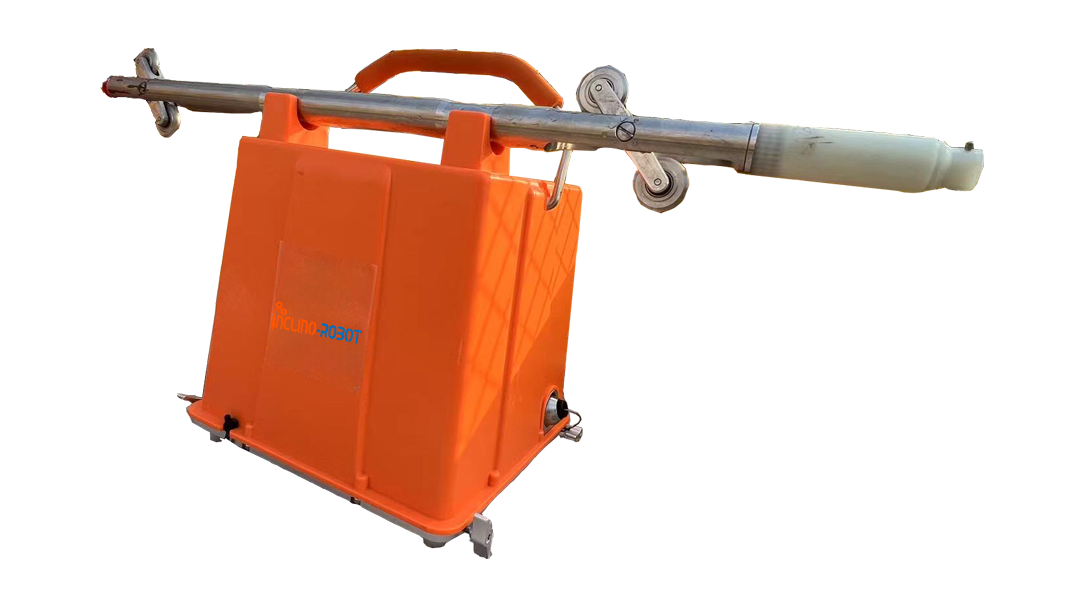

Ougan Monitoring's portable automatic pull-up inclinometer is a uniquely designed instrument that can automatically complete inclinometer operations, greatly reducing the tediousness and uncertainty of manual operations. The device is compact and light, with a total weight of about 12KG. It can be carried with one hand and measured on the go, achieving fast and accurate measurement.

INCLINOMETER WORKING PRINCIPLE

- Product -

Drive unit: Consists of a servo motor, an encoder wheel, and a wire spool, primarily used to count every 500mm and drive the motion of the measurement unit.

Measurement unit: Comprised of Micro-Electro-Mechanical Systems (MEMS) sensors and pulley kits, primarily used for measuring angular changes in the X and Y directions.

FEATURES OF INCLINO-ROBOT GEOTECHNICAL INCLINOMETERS

- Product -

Convenience

Portable with small

volume and light weight

Swift

One-button measurement, automatic operation,

data collection, and transmission;

Efficiency

One person can simultaneously operate multiple devices,

significantly improving measurement efficiency

Labor-saving

No manual wire pulling required

greatly reducing labor intensity

Safety

Data is stored and analyzed in the cloud

eliminating the risk of data loss

Economy

Affordable price with high

cost-performance ratio

Parameter

- Product -

Specifications
Size Parameters	Driver Unit	295260310mm
Size Parameters	Measurement Unit	φ31*H780mm
Performance Parameters	Measurement Range	0~±30°(Angle with the Verical)
	System Accuracy	0.25mm/m
	Resolution	0.02mm/500mm
	Reading Position Error at Each Depth	±1mm
	Maximum Measurement Depth	100meters
	Sensor Waterproofing	2MPa
	Sensor Pulley Spacing	500mm
	Sensor Diameter	31mm
	Sensor Length	780mm
	Sensor Weight	3kg
	Wire Rope Material	stainless steel
	Wire Rope Diameter	1.5mm
	Wire Rope Tensile Strength	1.5KN
	Wire Rope Weight	0.9kg/100m
	Power Consumption	For a 50m inclinometer borehole.it can be used up to 100 times in full
	Continuous Trouble-Free Operating Cycles	3000
	Suitable for External and Internal Diameter of Inclinometer Casing	external φ65mm internalφ54mm external φ70mm internal φ60mm
	Communication Method	4G
	Power Supply Method	Lithium Battery(15000mAh)
	Operating Temperature	﹣10°C~60°C
	Total Weight of the Product	11.8kg
Product Selection
Product name	Product model	Product description
Semi-automatic Inclinometer	IRM-45	Measurement depth 0-45 meters 4G Signal Transmission
Semi-automatic Inclinometer	IRM-100	Measurement depth 0-100 meters 4G Signal Transmission
